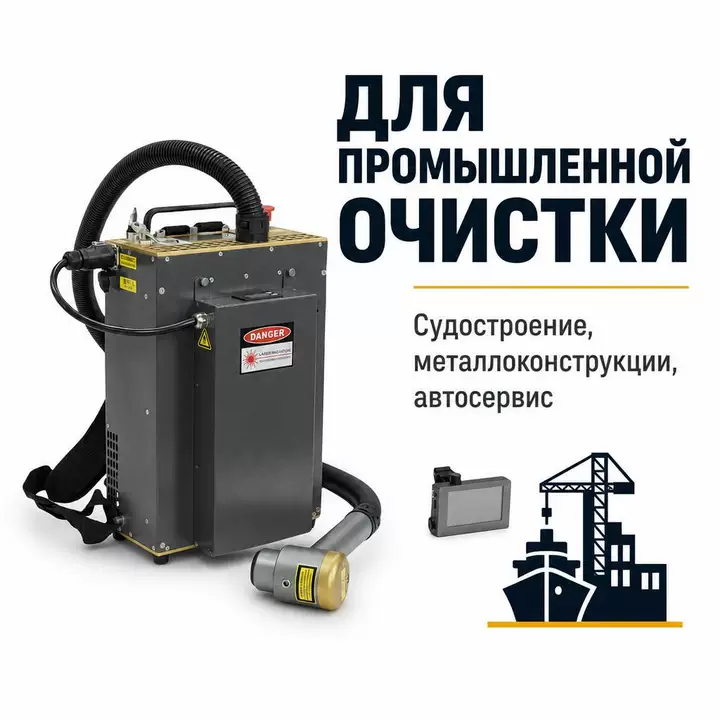

Industrial Backpack Laser Cleaning System
This battery-powered backpack pulsed laser cleaning machine is designed for real-world industrial applications, widely used in shipbuilding, steel-structure engineering, and automotive service workshops. Built with an original JPT 100W pulsed fiber laser source, this portable unit delivers stable laser output to remove rust, old paint, grease, oxide film, and welding residues on-site without damaging the base metal.
Key Features
- Portable backpack design weighing only 18 kg
- Free from external power supply constraints
- Built-in lithium battery supports 2-4 hours continuous full-power operation
- Fast charging in 1.5-2 hours
- Intelligent air-cooling structure for outdoor and field-service environments
- No water tank required
- Non-contact cleaning principle prevents base material damage
Technical Specifications
| Laser Source |
Original JPT pulsed fiber laser |
| Rated Power |
100 W |
| Wavelength |
1064 nm |
| Pulse Frequency |
20 kHz - 200 kHz (stepless adjustment) |
| Scanning Width |
0 - 60 mm (adjustable) |
| Cleaning Efficiency |
5 - 20 m²/h (depending on contaminant thickness) |
| Laser Service Life |
≥100,000 hours |
| Operating Temperature |
-10℃ to +45℃ |
Control & Operation
Equipped with a separate 4.3-inch industrial touch-screen controller and 1.5 m high-flexibility anti-break optical fiber hose. Working modes include continuous cleaning, interval cleaning, and precise spot cleaning. Multiple preset working modes can be switched with one click, and users can customize parameters for different contaminants.
Applications
- Shipbuilding: hull and component rust & paint removal
- Steel-structure projects: anti-corrosion pretreatment and old-coating stripping
- Auto-service workshops: chassis and metal-part refurbishment
- Mechanical manufacturing and mold maintenance
- Power-equipment overhaul
The equipment uses non-contact laser cleaning technology where high-energy pulsed laser acts only on surface attachments, stripping away contaminants by instant vaporization. Unlike sandblasting and chemical cleaning, it requires no abrasives or chemical reagents, produces minimal dust and no toxic waste, meeting industrial environmental protection requirements.
